300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line

1
MOQ
$32000~46000
価格
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
コンピュータ化された: はい
保証時間: 1年
生産速度: 2〜15m/min
折り畳み高さ: 20-300 mm (表示画面で設定)
高精度減速機: 6セット
接着線の間隔: 25.4 mm
ハイライト:

300mm HEPA filter pleating machine

,

fiberglass HEPA filter production line

,

mini HEPA filter gluing machine
基本情報
起源の場所: 安徽省、中国
ブランド名: TONGCHEN
証明: ISO
モデル番号: TC-5714
お支払配送条件
パッケージの詳細: 木箱
受渡し時間: 30
支払条件: T/T
供給の能力: 15
製品の説明
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line

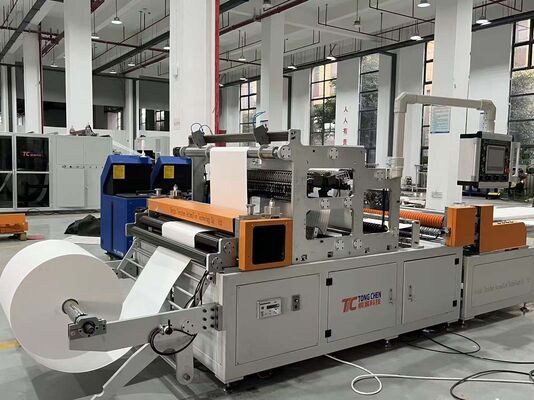

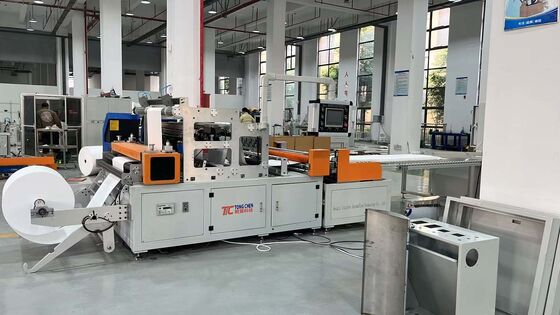

This fully automatic system is engineered for continuous folding and gluing of HEPA and mini-pleat filter materials. It supports a maximum folding width of 1300mm and a pleat height range of 20-300mm, providing stable operation, uniform spacing, and high production efficiency. This machine is ideal for manufacturing high-efficiency air filters, automotive filters, and other precision pleated filtration products.
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 0
Technical Specifications
Maximum Folding Width 1300 mm
Folding Height Range 20-300 mm (set via display screen)
Corrugation Flatness Standard Folding height is flat; spacing uniform and consistent
Production Speed 2-15 m/min
Power Controller 1 set
Servo Motors 1.3 kW × 2 sets; 4 kW × 1 set
Servo Motors (Auxiliary) 0.75 kW × 3 sets
High-Precision Reducers 6 sets
Hot-Melt Glue Machine Capacity 50 L × 2 (Foamed-grade gluing machines)
Glue Gun Two sets of 50-point independent glue components with separate solenoid valve control
Glue Line Spacing 25.4 mm
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 1
Applications
  • HEPA and mini-pleated filter manufacturing
  • Automotive air and cabin filter production
  • Industrial and HVAC filter material processing
  • High-precision filtration product assembly
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 2 300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 3
Key Advantages
  • Large pleat height range for flexible filter designs
  • High-precision servo synchronization for consistent folding
  • Dual foamed-grade hot-melt glue systems for stable bonding
  • Smart control interface for easy operation and quick setup
  • Robust and reliable mechanical structure for continuous production
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 4
Packaging & Delivery
Selling Units: Single item
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 5
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 6 300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 7 300mm Folding Height Fiberglass HEPA Mini Filter Pleating and Gluing Production Line 8
