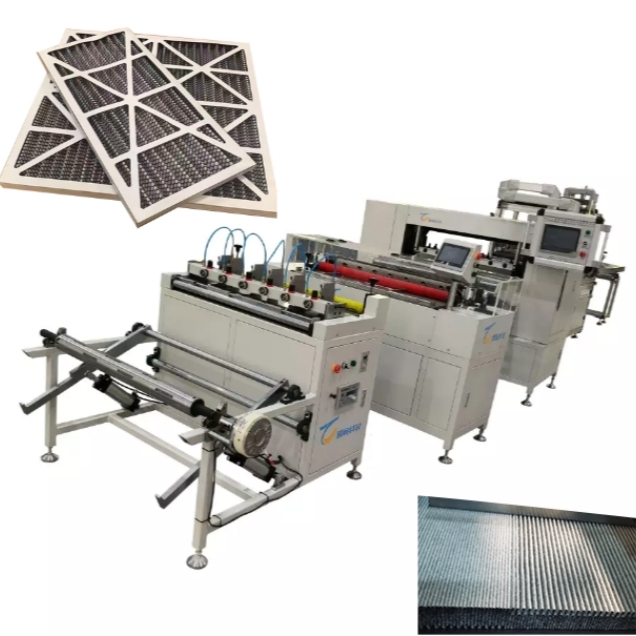

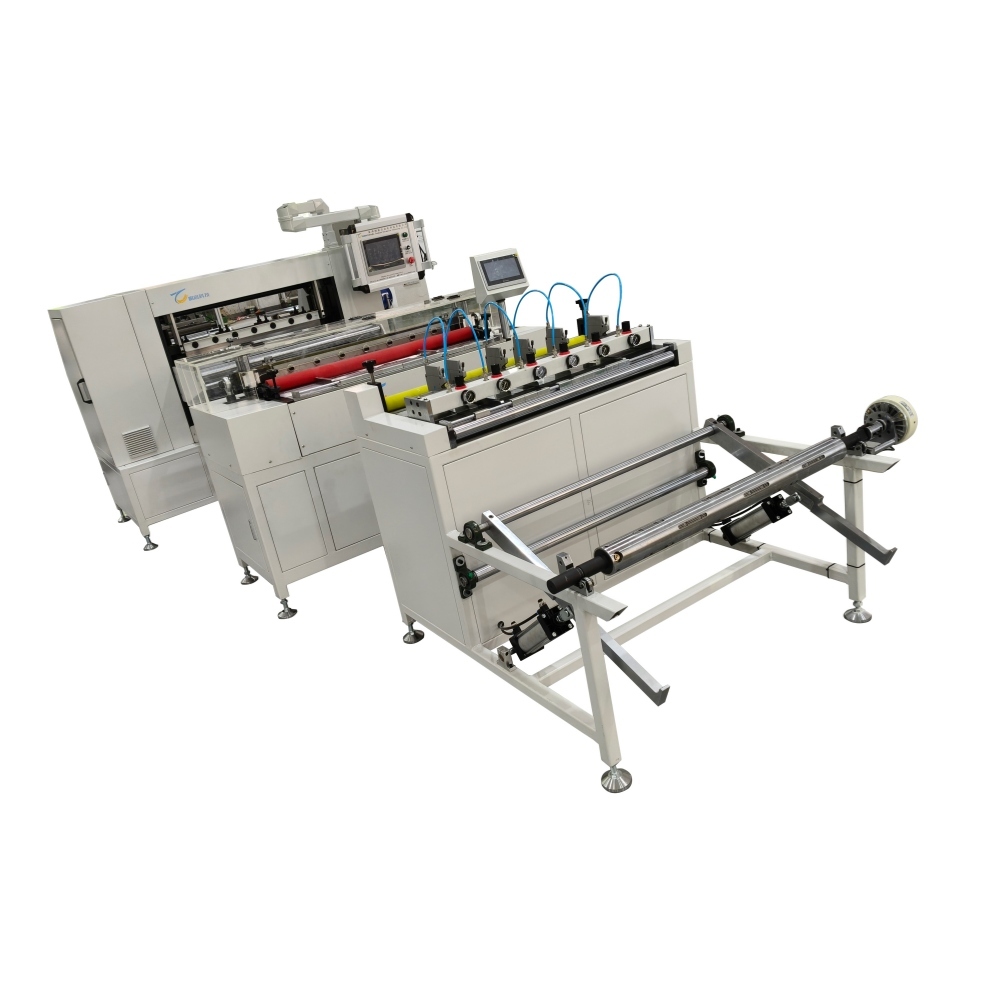

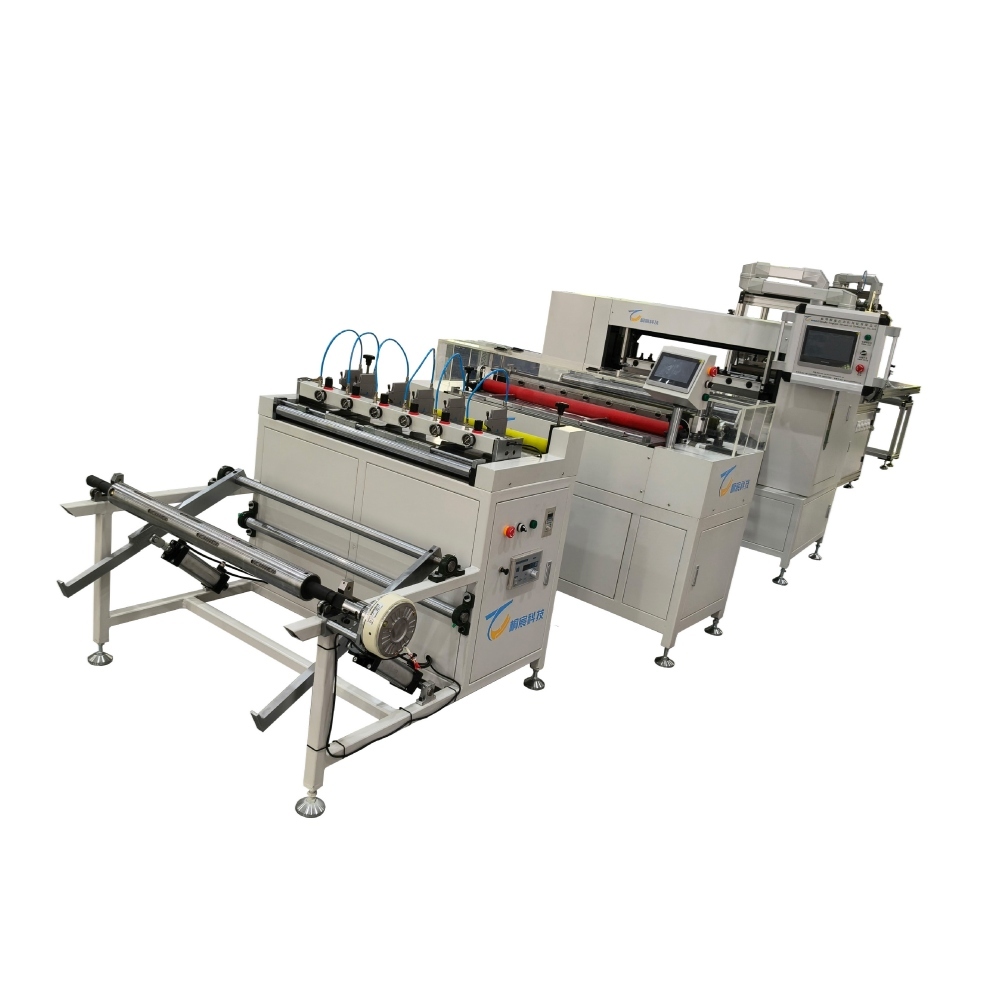

| Pre-slitting Paper Conveyor | Filter Paper Folder | Gluing Machine (Model 55-700) |
|---|---|---|
| Adjustable paper conveyor speed: 0.5 - 12 m/min | Maximum product width: 800 mm | Maximum product width: 700 mm |
| Adjustable filter paper width: 32 - 800 mm | Adjustable folding height range: 6 - 55 mm | Adjustable folding height range: 6 - 55 mm |
| Power supply voltage: 220V / 50Hz | Folding speed: 0 - 100 folds per minute | Production speed: 4 - 25 m/min |
| Motor power: 0.55 kW | Power supply voltage: 380V / 50Hz | Glue strip spacing: 25.4 mm |
| Machine weight: 350 kg | Motor power: 1.1 kW | Number of glue strips: 2 × 26, each controlled by electronic valve |
| Dimensions: 1500 × 1300 × 1100 mm | Preheating power: 4 kW | Glue-off control: Automatic intermittent glue-off function |
| Temperature control range: Ambient to 200°C | Power supply voltage: 380V / 50Hz | |
| Operating air pressure: 0.6 MPa | Total power: 13 kW | |
| Machine weight: 650 kg | Operating air pressure: 0.6 MPa | |
| Dimensions: 1670 × 1720 × 1240 mm | Machine weight: 500 kg | |
| Glue machine dimensions: 160 × 100 × 130 mm | ||
| Main machine dimensions: 4000 × 130 × 160 mm |
