Computerized Oil Filtration Fatigue Testing Machine With CNC Control

1
MOQ
$1000~6000
価格
Computerized Oil Filtration Fatigue Testing Machine With CNC Control
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
保証時間: 1年
コンピュータ化された: はい
制御モード: CNC制御
テスト媒体: 作動油・潤滑油
ハイライト:

oil filtration fatigue tester machine

,

HEPA filter pleating testing equipment

,

Computerized oil fatigue testing machine
基本情報
起源の場所: 安徽省、中国
ブランド名: TONGCHEN
証明: ISO
モデル番号: TC-5422
お支払配送条件
パッケージの詳細: 木箱
受渡し時間: 30
支払条件: T/T
供給の能力: 15
製品の説明

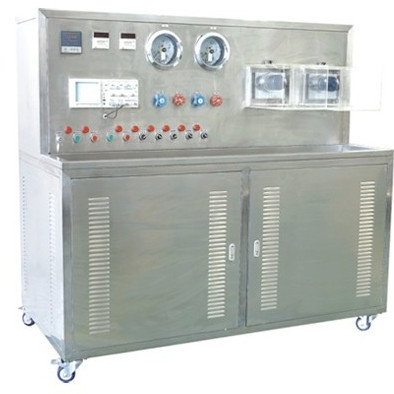

Oil Filtration Fatigue Testing Machine
The Oil Filtration Fatigue Testing Machine is a specialized device designed to evaluate the durability and fatigue resistance of oil filters used in industrial systems. It simulates long-term cyclic filtration working conditions to assess the filter's performance stability over extended use.
Equipped with a CNC control system, the machine enables precise setting of key test parameters including cyclic operation times, working pressure range, and flow rate. It features real-time monitoring of pressure fluctuations, filtration efficiency changes, and filter element deformation—with data automatically recorded for post-test analysis. The transparent test chamber allows visual observation of the filter's state during testing, reducing the risk of unforeseen failures.
Widely applied in filter manufacturers, quality inspection institutions, and industrial equipment R&D departments, this machine helps verify whether oil filters meet durability standards, predict their service life, and optimize product design. Its stainless steel frame ensures corrosion resistance, while the caster-equipped base enhances mobility for flexible workshop layout adjustments.
Computerized Oil Filtration Fatigue Testing Machine With CNC Control 0
Technical Specifications
Voltage 380 V
Power 1.5 kW
Core Components PLC, Engine
Oil Pump Flow Rate 32 L/min
Test Pressure 0-2 MPa (adjustable)
Precision Pressure Level 1
Temperature Control Range Room temperature to +100 °C
Motor Power 1.5 kW
Power Supply Voltage 380 V / 50 Hz
Waveform Display Using a slow scan oscilloscope
Pulse Frequency 5-60 adjustable times per minute
Machine Weight 500 kg
Overall Dimension (L × W × H) 1800 × 850 × 1450 mm
Warranty 1 Year
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Place of Origin Anhui, China
Brand Name PLM
Packaging and Delivery
Selling Units: Single item
Computerized Oil Filtration Fatigue Testing Machine With CNC Control 1 Computerized Oil Filtration Fatigue Testing Machine With CNC Control 2
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
Computerized Oil Filtration Fatigue Testing Machine With CNC Control 3
Computerized Oil Filtration Fatigue Testing Machine With CNC Control 4
Computerized Oil Filtration Fatigue Testing Machine With CNC Control 5
