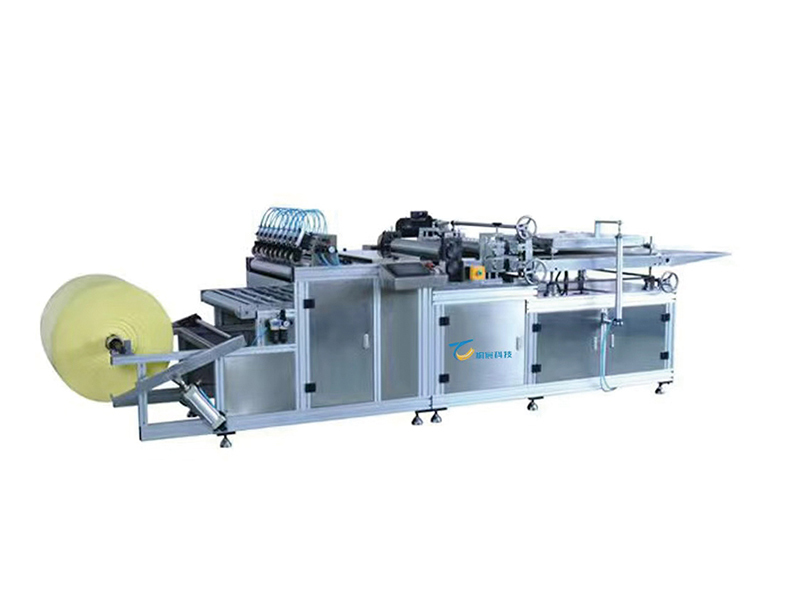

TC-600N Full-auto Rotary HDAF Paper Pleating Production Line

1
MOQ
7000-10000
価格
TC-600N Full-auto Rotary HDAF Paper Pleating Production Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
電源: 電気
機械試験報告書: 提供された
保証時間: 1年
寸法: 3600*1170*1200 mm (長さ*幅*高さ)
コンピュータ化された: はい
製品起源: 中国安徽省蚌埠
ハイライト:

full-auto rotary HDAF paper pleating machine

,

air filter production line with HDAF

,

TC-600N paper pleating production line
基本情報
起源の場所: 安徽省蚌埠
ブランド名: Bengbu Tongchen
モデル番号: TC-600N
お支払配送条件
パッケージの詳細: 木箱
受渡し時間: 15〜45日
支払条件: T/T
供給の能力: 無制限の供給
製品の説明
TC-600N Full-auto Rotary HDAF Paper Pleating Production Line
The TC-600N Full-auto Rotary HDAF Paper Pleating Production Line is built for manufacturers seeking high-speed, stable, and precise pleating performance. With advanced pneumatic cutting, steam-assisted preheating, and an intelligent roller marking system, this production line guarantees excellent pleat consistency and durability. Its computer-controlled interface and integrated auto processes significantly reduce labor intensity and increase production output.
Product Parameters
Item Specification
Product capability 0-35 m/min
Max. width 600mm
Min. width 30mm
Max. pleat height 50mm
Min. pleat height 12mm
Rollers sizes Customize the rollers sizes
Temperature control 0-300°C
Main power 12kW
Working air pressure 0.6MPa
Power supply 380V/50Hz
Machine weight 750kg
Machine dimension 3600 × 1170 × 1200mm (L×W×H)
Main Features
  • The pre-slitting uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
  • This machine equips the preheating and water steam device, to prevent the paper breaking when roller marking.
  • This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
  • The rolls can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.
  • This high automatic machine has the process of the auto-couning, pleating, preheating and forming.
  • This machine is computer control and simple operation.

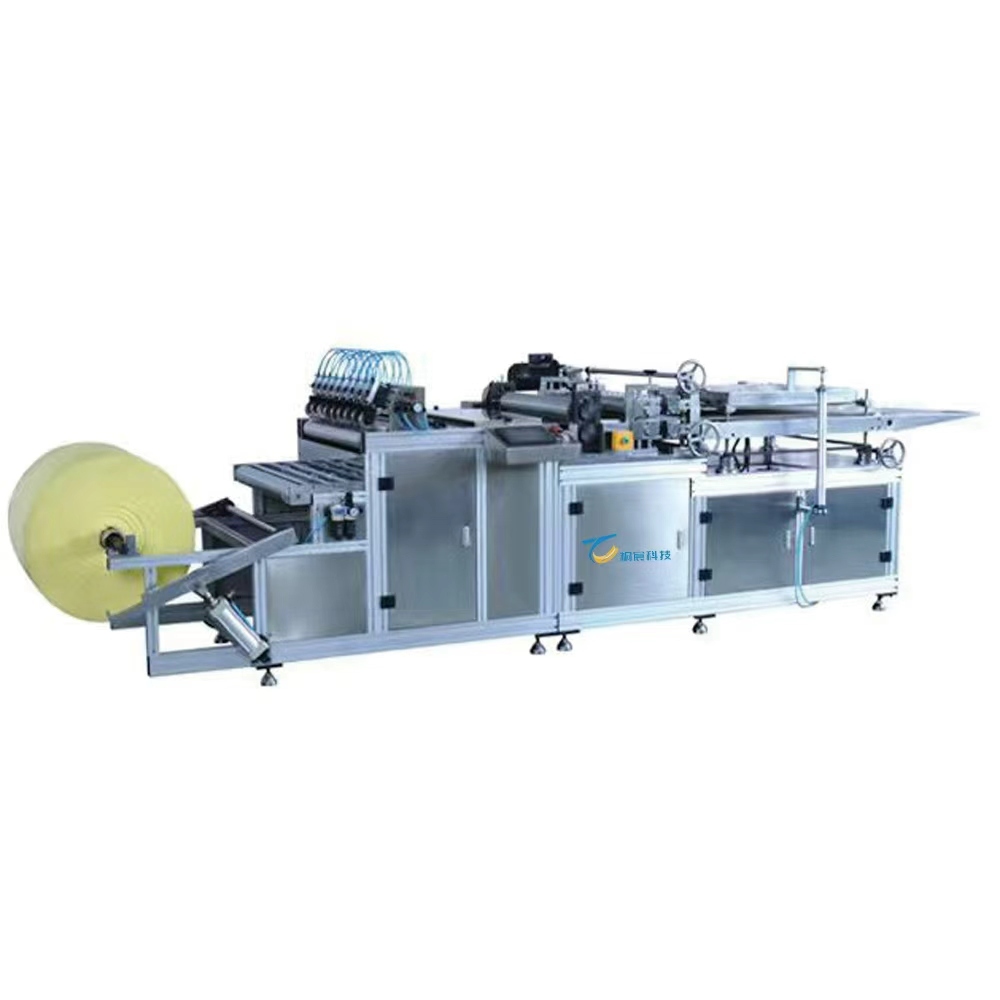

TC-600N Full-auto Rotary HDAF Paper Pleating Production Line 0
Product Advantages
  • High Automation - integrates slitting, pre-heating, steam softening, pleating, and forming in one continuous line.
  • Stable Pleat Quality - roller marking system ensures uniform and straight pleats.
  • Low Paper Breakage - steam and pre-heating greatly improve paper toughness before folding.
  • Customizable Roller Types - bubbled or pleat-lock rollers for different HDAF structures.
  • User-Friendly Operation - PLC computer control with simple adjustment and stable performance.
  • Efficient Production Speed - up to 35 m/min supporting large-scale production.
Applications
This machine is used for pleating and forming the HDAF filter element.
Suitable for:
  • Heavy-duty air filters (truck/bus filters)
  • Industrial air filtration systems
  • Engine intake filter elements
  • HVAC and large air purification filters
Company Profile
TC-600N Full-auto Rotary HDAF Paper Pleating Production Line 1
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines. For more information or to schedule a demonstration, please contact us. We are committed to providing tailored solutions that meet the unique needs of our clients.
Production Packaging
TC-600N Full-auto Rotary HDAF Paper Pleating Production Line 2 TC-600N Full-auto Rotary HDAF Paper Pleating Production Line 3
FAQ
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
