ホーム /製品/HEPAフィルタを折りたたむ機械/High-temperature Glass Fiber Pleating And Gluing Production Line.

High-temperature Glass Fiber Pleating And Gluing Production Line.

1セット

MOQ

59000

価格

High-temperature Glass Fiber Pleating And Gluing Production Line.

特徴ギャラリー製品の説明見積依頼

特徴

仕様

ハイライト:

high-temperature glass fiber pleating machine

,

HEPA filter gluing production line

,

glass fiber filter pleating equipment

基本情報

ブランド名: Bengbu Tongchen

お支払配送条件

受渡し時間: 5～8営業日

支払条件: T/T

ギャラリー

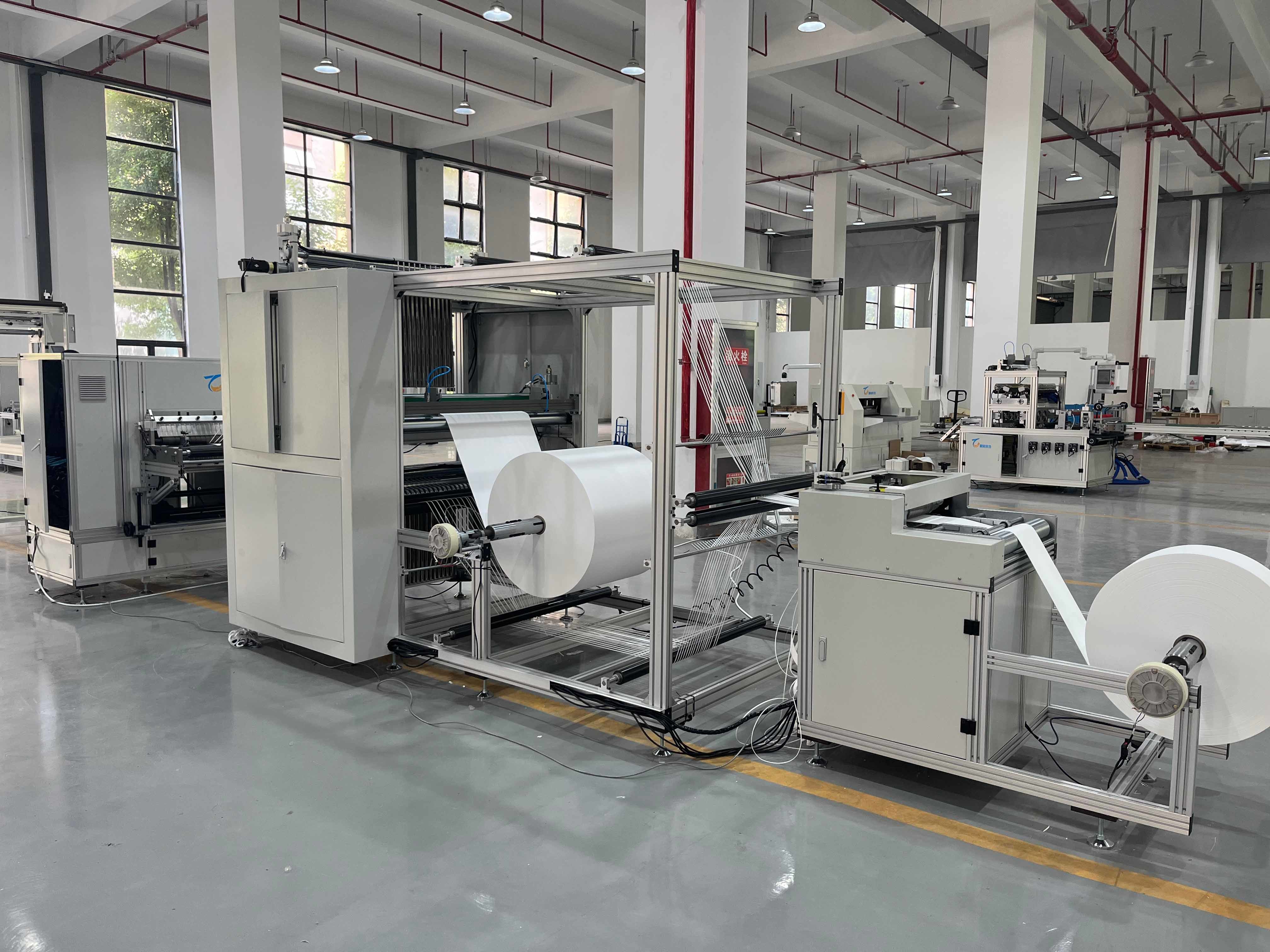

High-temperature Glass Fiber Pleating And Gluing Production Line.

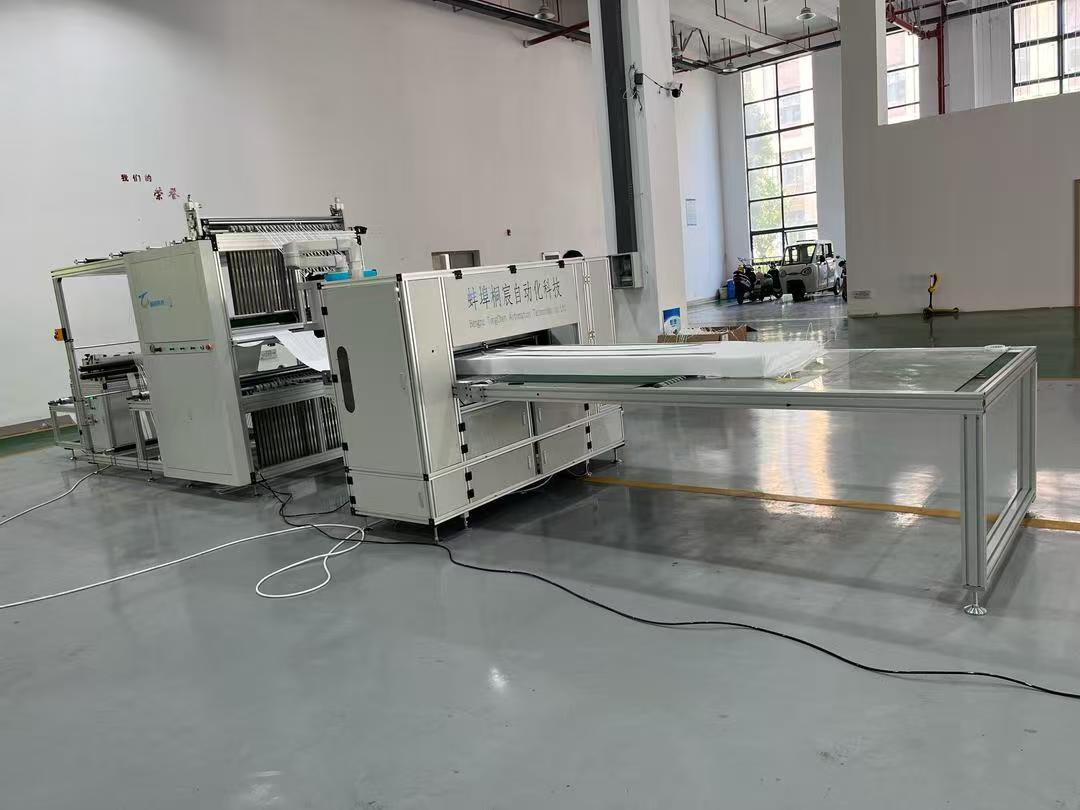

High-temperature Glass Fiber Pleating And Gluing Production Line.

製品の説明

High-temperature Glass Fiber Pleating And Gluing Production Line

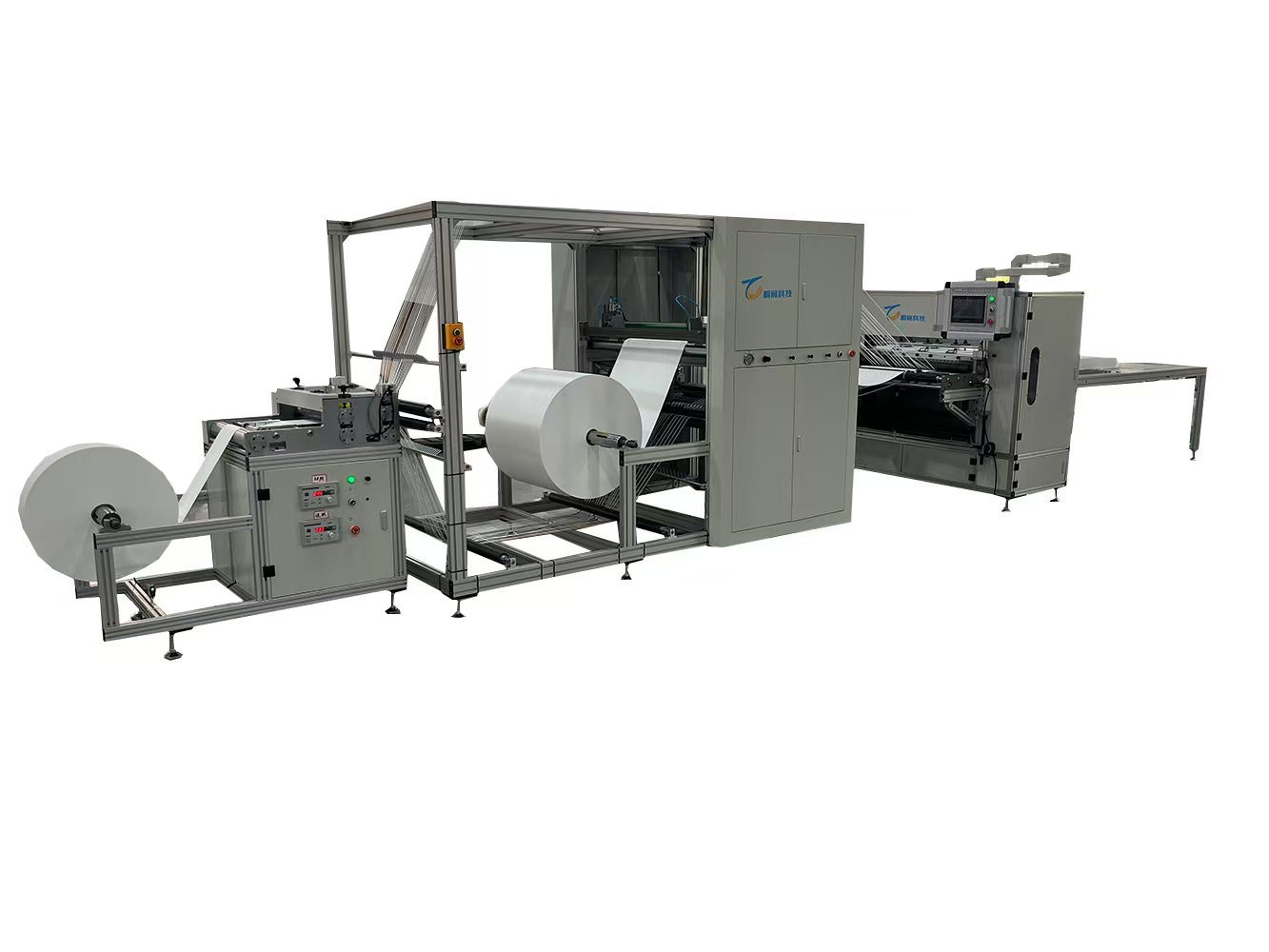

High-temperature Glass Fiber Pleating And Gluing Production Line. 0

Product Parameters

Parameters for reference only. Please consult customer service for details.

Machine Name	High-temperature Glass Fiber Pleating And Gluing Production Line
Model	LTGYG1000
Max width	<=1000mm
Pleating depth	30-850mm
Pleating speed	10-20 pleats/min
Pre-heat-power	0.75kw
Power voltage	220/380V/50HZ
Raw material coil diameter	<=800mm
Material	Non-woven, carbon fiber, wire mesh, active carbon

Features

Adjustable pleating height by computer without manual knife changes
Suitable for air filters, oil filters, water filters, cabin filters, and pre-filters

Cutting Machine Technical Parameters

Feed speed	0.5 m/min ~ 25 m/min
Adjustable width	25 to 850 mm
Power supply voltage	380V / 50Hz
Motor power	0.55 kw
Working pressure	0.6 Mpa
Machine weight	250 kg
Dimensions (L×W×H)	1280 × 1100 × 1200 mm

Main Components

Filter material feeding machine
Material feeding frame
Cutting paper guide
Conveying line
Automatic synchronous mechanism (top to bottom line)
Filter paper automatic synchronous mechanism
Cutting tension system

Company Profile

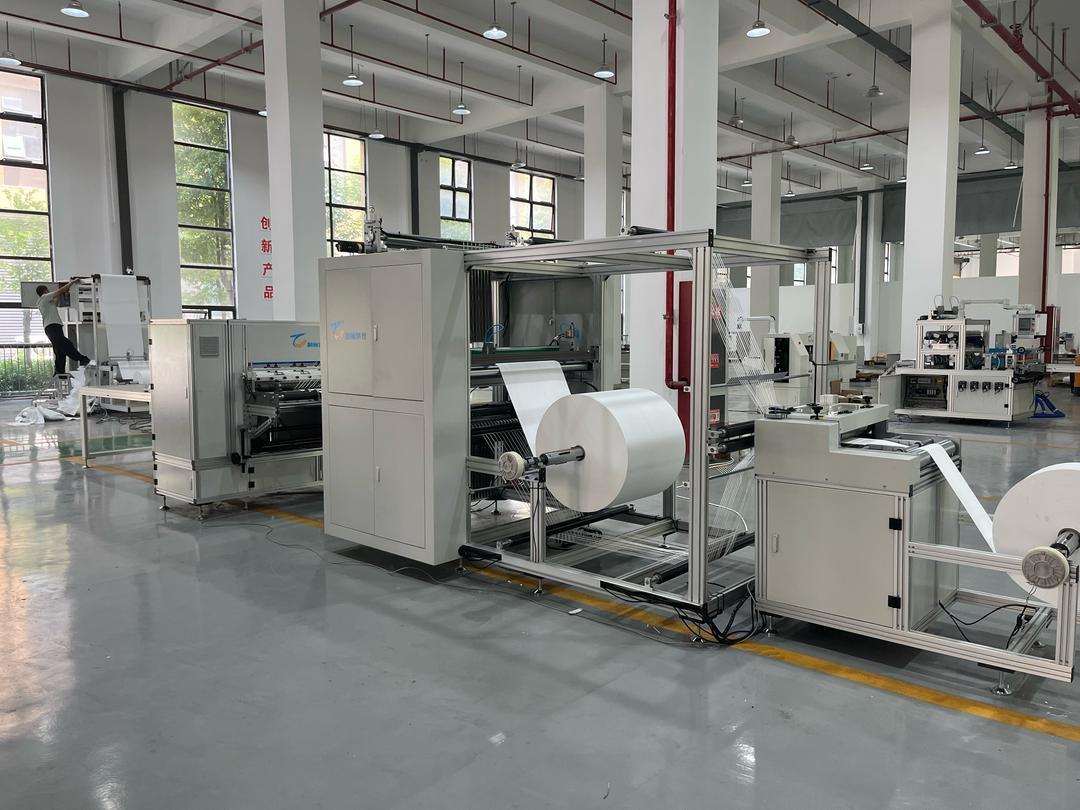

High-temperature Glass Fiber Pleating And Gluing Production Line. 1

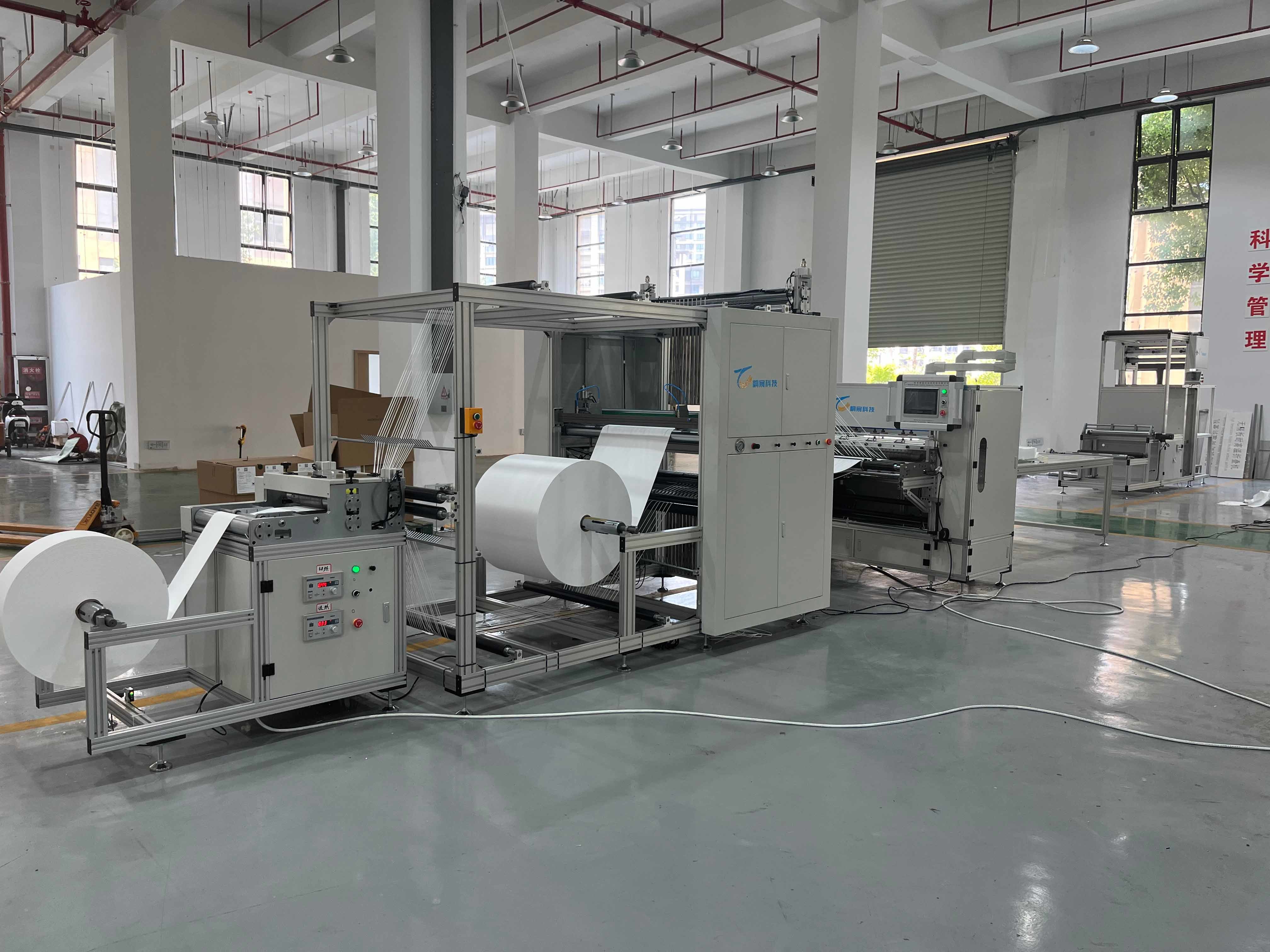

High-temperature Glass Fiber Pleating And Gluing Production Line. 2

Delivery

High-temperature Glass Fiber Pleating And Gluing Production Line. 3

Certification

High-temperature Glass Fiber Pleating And Gluing Production Line. 4

Why Choose Us

High-temperature Glass Fiber Pleating And Gluing Production Line. 5
